Continuous Integration


Software Engineering

(for Intelligent Distributed Systems)

A.Y. 2024/2025

Giovanni Ciatto (reusing material made by Danilo Pianini)


Compiled on: 2025-06-30 — printable version

back

Continuous Integration

The practice of integrating code with a main development line continuously
Verifying that the build remains intact

  • Requires build automation to be in place
  • Requires testing to be in place
  • Pivot point of the DevOps practices
  • Historically introduced by the extreme programming (XP) community
  • Now widespread in the larger DevOps community

What is integration in the first place?

  1. Not just simply merging code from different branches/developers…

  2. … but actually also building the software, with all its dependencies

    • restoring dependencies
    • compiling
    • linking
    • packaging
  3. … and testing the software

    • all sorts of automated tests: unit, integration, system, etc.
    • possibly, also deployment and release procedures
  4. for the sake of checking that the software as a whole is still working despite the changes since the last release

  5. possibly, doing further adjustments to the software code if necessary

    • e.g., if the component is not working any more, or if the tests are failing, etc.
    • here code may also include configuration files or build, test, or deployment scripts

The integration hell

  • Traditional software development takes several months for “integrating” a couple of years of development
  • The longer there is no integrated project, the higher the risk
$\Rightarrow$

How to make the integration continuous?

  1. Repeat the integration process as frequently as possible

    • ideally, as frequently as every commit, in practice, as frequently as every push to GitHub
  2. This implies running build, testing, and deployment processes very frequently as well

    • which is only possible if the entire process is automated
      • which is only possible if _automatic tests are available, as well as build automation scripts, and automatic release/deployment scripts
    • of course, retrospective adjustments are hard to automate, and should be done manually
  3. Do not rely on the assumption that developers will always remember to run these steps consistently before pushing

    • they will not, and they will forget to do it at some point
    • so we also need to automate the triggerig of the build, testing, and deployment processes
  4. Once the entire process is automated, there are further benefits:

    • integration issues can be spotted ASAP
    • the process can be repeated on different platforms (e.g. different OSs, and different versions of Python)
      • which is far more than what a developer can do on their own
    • emails and notifications can be sent upon failures of the process

Continous integration concept

  • The build process should be rich (comprehensive), fast, and automated
  • And run on another machine (or VM) than the developer’s one
    • this is to avoid the developer from being unable to work while the build is running
    • but also to ensure that the software runs outside from the developer’s environment
      • which increases the chances that the software will run on other machines as well
    • to allow for testing the software onto many, controlled environments
      • which in turns allows for giving compatibility guarantees to the customers/users

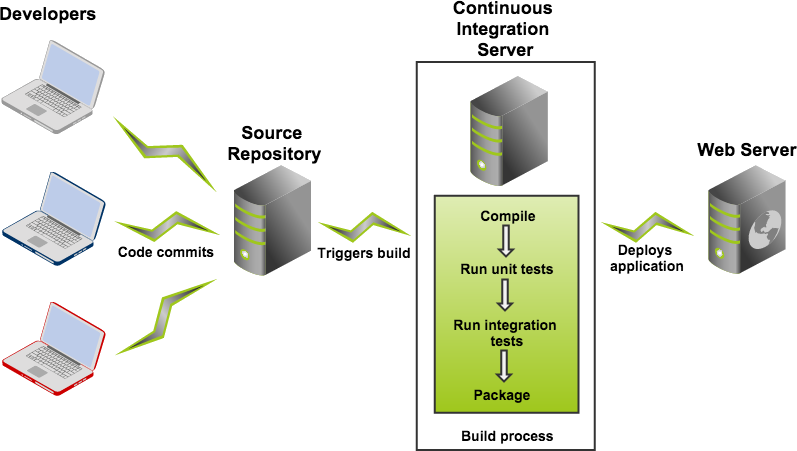

Continuous integration concept

Continuous integration software

Software that promotes CI practices should:

  • Provide clean environments for compilation/testing
  • Provide a wide range of environments
    • Matching the relevant specifications of the actual targets
  • High degree of configurability
  • Possibly, declarative configuration
  • A notification system to alert about failures or issues
  • Support for authentication and deployment to external services

Continuous integration software

Plenty of technologies on the market

We will use GitHub Actions: GitHub integration, free for FOSS, multi-os OSs supported

Core concepts

Naming and organization is variable across different technological, but in general:

  • One or more pipelines can be associated to events
    • For instance, a new commit, an update to a pull request, or a timeout
  • Every pipeline is composed of a sequence of operations
  • Every operation could be composed of sequential or parallel sub-operations
  • How many hierarchical levels are available depends on the specific platform
    • GitHub Actions: workflow $\Rightarrow$ job $\Rightarrow$ step
    • Travis CI: build $\Rightarrow$ stage $\Rightarrow$ job $\Rightarrow$ phase
  • Execution happens in a fresh system (virtual machine or container)
    • Often containers inside virtual machines
    • The specific point of the hierarchy at which the VM/container is spawned depends on the CI platform

Pipeline design

In essence, designing a CI system is designing a software construction, verification, and delivery pipeline with the abstractions provided by the selected provider.

  1. Think of all the operations required starting from one or more blank VMs
    • OS configuration
    • Software installation
    • Project checkout
    • Compilation
    • Testing
    • Secrets configuration
    • Delivery
  2. Organize them in a dependency graph
  3. Model the graph with the provided CI tooling

Configuration can grow complex, and is usually stored in a YAML file
(but there are exceptions, JetBrains TeamCity uses a Kotlin DSL).

Pipeline design (abstract example)

  • Rectangles represent operations

GitHub Actions (GHA): Structure

  • Workflows are groups of one or many jobs

    • triggered by events such as: a developer pushing on the repository, a pull request being opened, a timeout, a manual trigger, etc.
    • multiple workflows run in parallel, unless specified otherwise by whoever designed the workflows
  • Jobs is a sequential list of logical steps

    • different jobs from the same workflow run in parallel, unless a dependency among them is explicitly declared
      • in case of a dependency, the dependent job will run only after the dependency job is completed successfully
    • steps of the same job run in the exact same order as they are defined in the job
    • each job runs inside a fresh new Virtual Machine (VM), with a selectable OS
      • most common development tools (e.g. Git, Python, Poetry, etc.) are pre-installed by default…
      • but further may be installed if needed (e.g. MySQL, PostgreSQL, etc.)
    • the VM is destroyed after the job is completed
      • users can see the logs of the job execution
      • any relevant data produced by the job must be explicitly saved elsewhere (as part of the job), otherwise it will be lost
    • [IMPORTANT] jobs can be configured to run multiple times with different OS/runtimes: this is the matrix execution strategy
  • Steps is just executing a command in the shell of the job’s VM

    • e.g. cloning the repository via git
    • e.g. restoring Python dependencies via poetry
    • e.g. running the tests via unittest
    • e.g. releasing the software via poetry
    • e.g. doing some automatic edit to the repository (such as updating the version number), then committing and pushing the change automatically

GitHub Actions (practical example)

  • Small rectangles represent steps
  • Azure boxes represent jobs
  • The whole is a workflow

GitHub Actions: Configuration

  • Workflows are configured in YAML files located in the default branch of the repository

    • in the .github/workflows/ folder.
  • One configuration file $\Rightarrow$ one workflow

  • For security reasons, workflows may need to get manually activated in the Actions tab of the GitHub web interface.

    • on a per-repository basis

GitHub Actions: Runners

  • Executors of GitHub actions are called runners
    • virtual machines (commonly hosted by GitHub)
      • with the GitHub Actions runner application installed.

Note: the GitHub Actions application is open source and can be installed locally, creating “self-hosted runners”. Self-hosted and GitHub-hosted runners can work together.

Convention over configuration

Several CI systems inherit the “convention over configuration” principle.

GitHub actions does not adhere to the principle: if left unconfigured, the runner does nothing (it does not even clone the repository locally).

  • Probable reason: Actions is an all-round repository automation system for GitHub,
    • not just a “plain” CI/CD pipeline
    • $\Rightarrow$ it can react to many different events, not just changes to the git repository history

GHA: basic workflow structure

Minimal, simplified workflow structure:

# Mandatory workflow name
name: Workflow Name
on: # Events that trigger the workflow
jobs: # Jobs composing the workflow, each one will run on a different runner
    Job-Name: # Every job must be named
        # The type of runner executing the job, usually the OS
        runs-on: runner-name
        steps: # A list of commands, or "actions"
            - # first step
            - # second step
    Another-Job: # This one runs in parallel with Job-Name
        runs-on: '...'
        steps: [ ... ]

Workflow minimal example

name: CI/CD
on:
  push:
    branches: [ main ]
jobs:
  test:
    runs-on: ubuntu-latest
    name: Test on Linux
    timeout-minutes: 45
    steps:
      - name: Checkout code
        uses: actions/checkout@v4

      - name: Restore Python dependencies
        run: poetry install

      - name: Test
        shell: bash
        run: poetry run python -m unittest discover -v -s tests

Consider check.yml file on the calculator repository for a more complete example

GHA Steps: run vs uses

What is a GHA action?

  • In the eyes of the GHA user: a reusable and parametric functionality which makes sense in the GHA ecosystem

  • In the eyes of the GHA developer: a GitHub repository the code to parametrise and reuse some functionality

Checking out the repository

By default, GitHub actions’ runners do not clone the repository

(this is because actions may, sometimes, not need to access the code, e.g., when automating issues, projects, etc.)

Cloning and checking out the repository is done via a dedicated action:

name: Example workflow
on:
  push:
    branches: [ main ]
jobs:
  permissions:
    contents: write # Give write (e.g. push) permissions to this Job (i.e. steps may perform changes to the repository it self)
  Explore-GitHub-Actions:
    - name: Check out repository code
      uses: actions/checkout@v4
      with:
        fetch-depth: 0 # Fetch all history for all branches and tags
        token: ${{ secrets.GITHUB_TOKEN }} # Use the GITHUB_TOKEN secret to clone, enabling future pushes in next steps

By default, only the last commit of the current branch is fetched by this action (shallow cloning has better performance)

  • $\Rightarrow$ It may break operations that rely on the entire history!
    • e.g., computing the next version number depending on the last tag in the Git history
    • use fetch-depth: 0 to fetch the entire history
  • If you plan to be able to push changes to the repository, you need to
    • provide a token with write permissions, e.g. token: ${{ secrets.GITHUB_TOKEN }}
      • secrets are explained a few slides later
    • if you use the GITHUB_TOKEN secret, you need to set the permissions field to write for the contents permission
      • this is because the default permission for the GITHUB_TOKEN secret are read-only

Writing outputs

Communication with the runner happens via workflow commands
The simplest way to create outputs for actions is to print on standard output a message in the form:
"{name}={value}"
and redirect it to the end of the file stored in the $GITHUB_OUTPUT environment variable: echo "{name}={value}" >> $GITHUB_OUTPUT

name: Outputs
on: # ...
jobs:
  Build:
    runs-on: ubuntu-latest
    steps:
      - id: output-from-shell
        run: python -c 'import random; print(f"dice={random.randint(1, 6)}")' >> $GITHUB_OUTPUT

      - run: |
          echo "The dice roll resulted in number ${{ steps.output-from-shell.outputs.dice }}"

Build matrix

Most software products are meant to be portable

  • Across operating systems
  • Across different frameworks and languages
  • Across runtime configuration

A good continuous integration pipeline should test all the supported combinations*

  • or a sample, if the performance is otherwise unbearable

The solution is the adoption of a build matrix

  • Build variables and their allowed values are specified
  • The CI integrator generates the cartesian product of the variable values, and launches a build for each!
  • Note: there is no built-in feature to exclude some combination
    • It must be done manually using if conditionals

Build matrix in GHA

name: Workflow with Matrix
on: # ...
jobs:
  test:
    strategy:
      fail-fast: false
      matrix:
        os:
          - ubuntu-latest
          - windows-latest
          - macos-latest
        python-version:
          - '3.10'
          - '3.11'
          - '3.12'
    runs-on: ${{ matrix.os }}
    name: Test on Python ${{ matrix.python-version }}, on ${{ matrix.os }}
    timeout-minutes: 45
    steps:
      - name: Setup Python
        uses: actions/setup-python@v5
        with:
          python-version: ${{ matrix.python-version }}

      - name: Install poetry
        run: pip install poetry

      - name: Checkout code
        uses: actions/checkout@v4

      - name: Restore Python dependencies
        run: poetry install

      - name: Test
        shell: bash
        run: poetry run python -m unittest discover -v -s tests

Private data and continuous integration

We would like the CI to be able to

  • Sign our artifacts
  • Delivery/Deploy our artifacts on remote targets

Both operations require private information to be shared

Of course, private data can’t be shared

  • Attackers may steal the identity
  • Attackers may compromise deployments
  • In case of open projects, attackers may exploit pull requests!
    • Fork your project (which has e.g. a secret environment variable)
    • Print the value of the secret (e.g. with printenv)

How to share a secret with the build environment?

Secrets

Secrets can be stored in GitHub at the repository or organization level.

GitHub Actions can access these secrets from the context:

  • Using the secrets.<secret name> context object
  • Access is allowed only for workflows generated by local events
    • Namely, no secrets for pull requests

Secrets can be added from the web interface (for mice lovers), or via the GitHub CLI:

gh secret set TEST_PYPI_TOKEN -b "dhhfuidhfiudhfidnalnflkanjakl"

Stale builds

  1. Stuff works
  2. Nobody touches it for months
  3. Untouched stuff is now borked!

  • Connected to the issue of build reproducibility
    • The higher the build reproducibility, the higher its robustness
  • The default runner configuration may change
  • Some tools may become unavailable
  • Some dependencies may get unavailable

The sooner the issue is known, the better

$\Rightarrow$ Automatically run the build every some time even if nobody touches the project

  • How often? Depends on the project…
  • Warning: GitHub Actions disables cron CI jobs if there is no action on the repository, which makes the mechanism less useful

Additional checks and reportings

There exist a number of recommended services that provide additional QA and reports.

Non exhaustive list:

  • Codecov.io
    • Code coverage
    • Supports Jacoco XML reports
    • Nice data reporting system
  • Sonarcloud
    • Multiple measures, covering reliability, security, maintainability, duplication, complexity…
  • Codacy
    • Automated software QA for several languages
  • Code Factor
    • Automated software QA

High quality FLOSS checklist

The Linux Foundation Core Infrastructure Initiative created a checklist for high quality FLOSS.

CII Best Practices Badge Program https://bestpractices.coreinfrastructure.org/en

  • Self-certification: no need for bureaucracy
  • Provides a nice TODO list for a high quality product
  • Releases a badge that can be added e.g. to the project homepage

Automated evolution

A full-fledged CI system allows reasonably safe automated evolution of software
At least, in terms of dependency updates

Assuming that you can effectively intercept issues, here is a possible workflow for automatic dependency updates:

  1. Check if there are new updates
  2. Apply the update in a new branch
  3. Open a pull request
  4. Verify if changes break anything
    • If they do, manual intervention is required
  5. Merge

Automated evolution

Bots performing the aforementioned process for a variety of build systems exist.

They are usually integrated with the repository hosting provider

  • Whitesource Renovate (Multiple)
    • Also updates github actions and Gradle Catalogs
  • Dependabot (Multiple)
  • Gemnasium (Ruby)
  • Greenkeeper (NPM)

Check your understanding (pt. 1)

  • In your own words, what is continuous integration?
  • In your own words, what is integration hell?
  • In the context of continuous integration, what is a pipeline?
  • What is GitHub Actions?
  • In the context of continuous integration, provide an overview of the abstract pipeline design
  • In the context of GitHub Actions, what is the difference among workflow, jobs, steps
  • How would you design a GitHub Actions workflow for a Python project?
  • In the context of GitHub Actions, what is a runner?
  • What is YAML? What is the difference between YAML and JSON?
  • In the context of GitHub Actions, what is a matrix?
  • In the context of GitHub Actions, what is a secret?

Check your understanding (pt. 2)

  • In the context of software engineering, what is integration? What is continuous integration?
  • In the context of software engineering, what are the issues arising from infrequent integration/release events?
  • In the context of software engineering, how to make integration continuous?
  • What is GitHub Actions? What is its purpose? How does it work?
  • In the context of GitHub Actions, what is the difference among workflow, jobs, steps
  • In an ordinary Python project using Poetry for build automation and release on PyPi and unittest for automatic tests, how would you organize a continuous integration pipeline? (What operations should be performed in each run of the pipeline?)

Lecture is Over


Compiled on: 2025-06-30 — printable version

back to ToC
